Small-Capacity Induction Furnace (Micromelters)
Compact Systems Suitable for Research and High-Mix Low-Volume Production

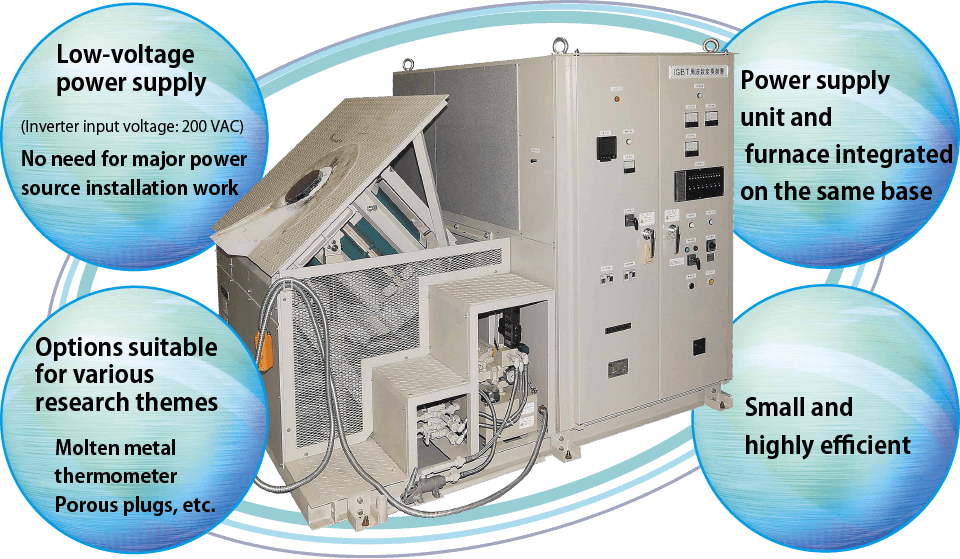

To address the need for a research furnace for the casting of prototypes, Kitashiba offers compact, easy-to-operate induction furnaces that integrate a power supply unit and a furnace on the same base.
System outline
| Power supply capacity | 30 to 100kW | |
|---|---|---|
| Power supply frequency | 1,000 to 3,000Hz (1,000Hz at 100kW) |
|
| Input voltage | 200 VAC - 50/60Hz - 3φ | |
| Molten metal volume | 5 to 100kg (cast iron) | |
| Melting materials | Cast iron, steel, copper alloys, etc. | |
| External dimensions | Width | 2,000mm |
| Depth | 2,400mm | |
| Height | 2,600mm (with filter) |
|
| Furnace height | 1,000mm | |
