Blower Motors for Air Conditioners
About Blower Motors for Air Conditioners
The blower motor sends cool or warm air from an automobile air conditioner to the cabin.Kitashiba offers an extensive portfolio of blower motors suitable for air conditioners for subcompact, compact, medium-sized, and large-sized cars.
Kitashiba helps offer value through a comfortable cabin and driving experience.

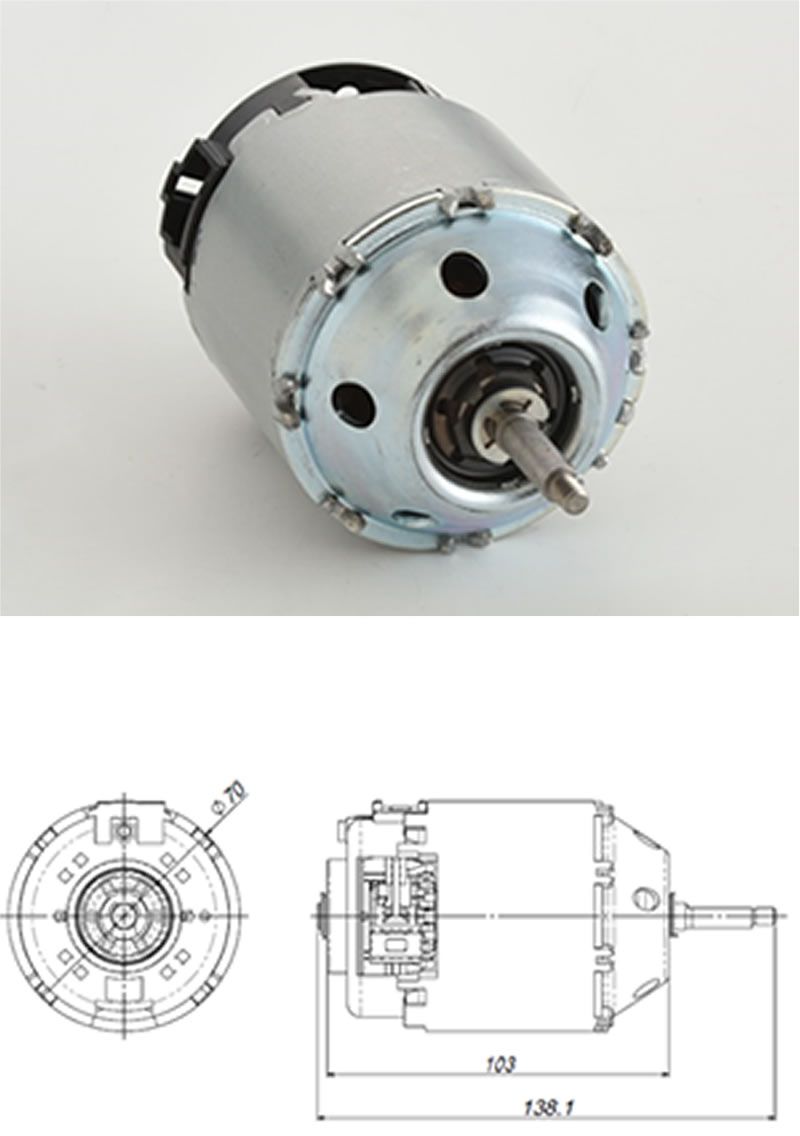

X series
| Product overview | Small and lightweight, the X series is designed to accommodate the need for the ongoing electrification of automobiles. The four-pole X motor series, which operates with two brushes, is 30% lighter than the standard model of the 7 series. |
|---|---|
| Product coverage | Subcompact, compact (1000-1500cc), and medium-sized (1500-2000cc) cars |
| Features | Small and lightweight (30% lighter than the standard model of the 7 series), long life, high efficiency, high quality |
| Product options | Since the X series uses a separate connector, the connector type is selectable.The standard shaft of the X series is a D shaft (i.e., a shaft with drive flat).A round shaft is optionally selectable.An EMC option is also available. In addition, we are ready to satisfy unique assembly requirements for related components (HVAC flanges and fans). For details, contact Kitashiba. |

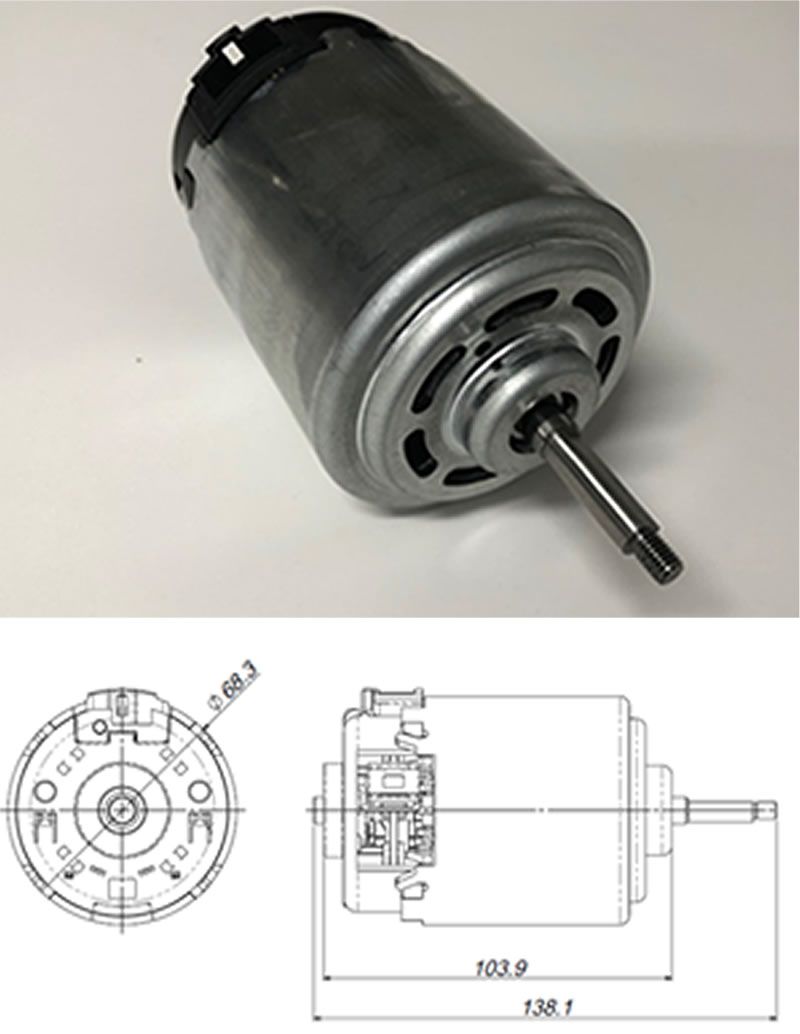

7 series
| Product overview | Kitashiba commenced the volume production of the 7 series 16 years ago. The 7 series is a longtime best-seller due to quiet operation, long life, and a wide application range.A plastic flange fan can be optionally attached to the 7 series. Kitashiba also offers high-output, long-life motors designed for special applications. For details, contact Kitashiba. |
|---|---|
| Product coverage | Subcompact, compact (1000-1500cc), medium-sized (1500-2000cc), and large-sized (> 2000cc) cars |
| Features | Quiet operation, long life, wide application range, high quality |
| Product options | The connector type is selectable. The standard shaft of the 7 series is a D shaft (i.e., a shaft with drive flat). A round shaft is optionally selectable. The 7 series is also available with a double shaft. An EMC option is also available. In addition, we are ready to satisfy unique assembly requirements for related components (HVAC flanges and fans). For details, contact Kitashiba. |
Normal type
Powerful type

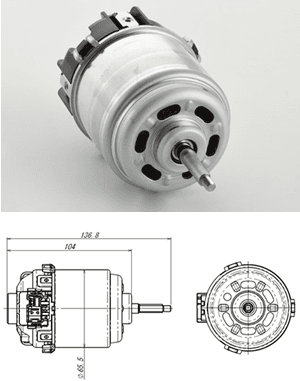

U series
| Product overview | The U series is suitable for a wide range of environmental conditions and vehicles, as represented by the letter U that stands for “universal.” In addition to passenger cars, the applications of the U series include construction machines, agricultural machines, trucks, buses, and other vehicles that require enhanced dust and vibration resistance. |
|---|---|
| Product coverage | Subcompact, compact (1000-1500cc), medium-sized (1500-2000cc), and large-sized (> 2000cc) cars |
| Features | Quiet operation, long life, wide application range, high quality, dust resistance, high customizability |
| Product options | In addition to standard bearings, double-shielded bearings can be selected to increase dust resistance. Since the U series uses a separate connector, the connector type is selectable. The standard shaft of the U series is a D shaft (i.e., a shaft with drive flat). A round shaft is optionally selectable. The U series is also available with a double shaft. An EMC option is also available. In addition, we are ready to satisfy unique assembly requirements for related components (HVAC flanges and fans). For details, contact Kitashiba. |
